Light is an electromagnetic wave

Wave equations for E and B

The Maxwell's equations in their integral forms are:

These 1864 Maxwell's equations unify the electric and magnetic fiels. Their both linked propagation predict the existence of an electromagnetic wave, which Maxwell called light. At this time these equations describe the behavior of visible light, radio waves, microwaves, and x-rays.

In the vacuum without any presence of a net charge or current (Σq_i = 0 and μ₀ ΣI = 0) as in the cube in the figure, we have:

In this chapter, we will show that the description of an electromagnetic wave comes from these equations.

Let's consider that the wave is moving with respect to the "x" direction, and far from the charge source (source of the waves), the wavefronts are planar (they are spherical near the source and become planar far from the source) . This approximation is called the plane-wave approximation. Therefore the fields E and B do not depend on the components "y" and "z";
hence: E = E(x,t) and B = B(x,t).

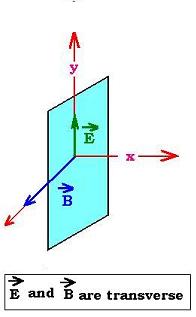

1. E and B are transverse

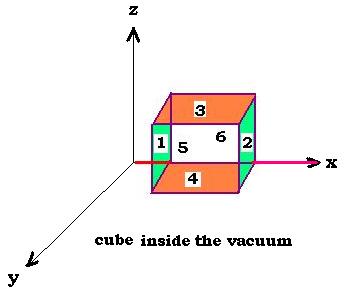

The gaussian surface is the surface of the cube composed by the six faces 1,2,3,4,5, and 6. The Gauss law, for this cube is written as follows:

Where:
E(n) is the electric field that crosses the side "n", and dS(n) the elementary surface vector of the side "n". We have:
dS(1) = - dS(2) = dz dy, dS(3) = - dS(4) = dy dx, and dS(5) = dS(6) = dx dz

Since the field E does not depend on "y" nor on "z", we have: E_y(5) = E_y(6),
E_z (3) = E_z (4), but E_x (1) is different from E_x (2).
Therefore, in the equation (1) the third term and the fourth terms cancel each other; the fifth and the sixth terms as well.
The equation (1) becomes:
∫E_x(1)dz dy + ∫E_x(2)dz dy = 0


If we write: ∫ dz dy = Δz Δy, we have then E_x(1) = E_x(2); that is E_x does not depend on "x". But E does depend on "x", that means that the dependency on "x" exist on the components "y" and "z", as E = E(0, f(x), g(x));. If E_x does not depend on x, that means E_x is constant the long of "x", even when it is equal to zero. We have to conclude that E_x == 0. Forethermore the electric field wave is transverse, it has no component along the direction of the propagation. Similarly, by the same analysis using the relation (2), we conclude that the magnetic field wave is transverse.

2. E and B are perpendicular

The wave propagates along "x". E and B are transverse ( E and B are perpendicular to "x").

Now, let's oriente E along "y" and write E = E_y(x,t); and determine the direction of B.


From the equations of Maxwell, we will use the fourth relationship, that is the Fraday's law.

Let's consider the small square path in the plane (x,z) as shown in the figure.

Each displacement along this path is perpendicular to the electric field E, we have

The integration of the relationship d(∫B.dS)/dt gives: d/dt [B_y.ΔxΔz]. Hence:
ΔxΔz ∂B_y/∂t= 0. This result means that B_y does not depend on t, but does the magnetic field B. Hence B_y is constant in time even when B = 0. We conclude then B_y = 0.

Since B_x = 0 (from 1.1.), and B_y = 0; it remains only the "z" component. We can write then: B = B(x,t) along the "z" axis.

The conclusion is :
E = E_y(x,t); and B = B_z(x,t), then E and B are perpendicular. The wave moves along "x". B ocsillates in the plane (x,z) and E oscillates in the plane (x,y) which is the plane of polarization of the wave.

3. The wave equation for E and B

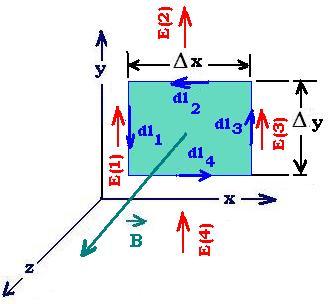

Now, we will apply again the Fraday's law for the following square path::

The left-hand side of the Faraday's law is:

The right-hand side fo the Faraday's law is:
- d(∫B.dS)/dt = - Δy Δx ∂B_z/∂t

Then, the Faraday's law becomes:
Δy Δx ∂ E_y/∂x = - Δy Δx ∂B_z/∂t
Or:
∂E_y/∂x = - ∂B_z/∂t    (3.1)

Now, we will use the fourth equation:

Along the square path

E dS = E_y Δy (- Δx) and d(∫E_y.dS)/dt = - Δy Δx dE_y/dt

Equating, we get:
Δy Δx ∂ B_z/∂x = - ε₀ μ₀ Δy Δx ∂E_y/∂t
That is:
∂B_z/∂x = - ε₀ μ₀ ∂E_y/∂t    (3.2)

Differentiating the equations (3.1) and the equation (3.2) with respect to x and t respectively, we find:

∂²E_y/∂x² = - ∂[∂B_z/∂t]/∂x
∂[∂B_z/∂x]/∂t = - ε₀ μ₀ ∂²E_y/∂t²
Thus:

Similarly, if we differentiate the equations (3.1) and the equation (3.2) with respect to t and x respectively, we find:
∂[∂E_y/∂x ]∂t = - ∂²B_z/∂t²
∂²B_z/∂x² = - ε₀ μ₀ ∂[∂E_y/∂t]∂x
Thus:

These two equations are the wave equations for E and B. Comparing with the harmonic wave equation, we can express the speed of the wave as 1/v² = ε₀ μ₀. Hence:
v = c = [ε₀ μ₀]^{- 1/2}
ε₀ = 4π x 10^{- 7} kg.m/s².A²
μ₀ = 8.85 x 10^{- 12} s⁴. A²/kg.m³

Then:
c = 3.00 x 10⁸ m/s. That is the speed of light in the vacuum.

As Maxwell did, we proclame that, since the electromagnetic (E&B) wave propagates at the speed of light; then light is an electromagnetic wave.
