Sound wave

1. Definitions

A sound wave is a mechanical wave with a frequency between 20 Hz and 20 kHz. Sound can travel in gases (air) or liquids or even solids.

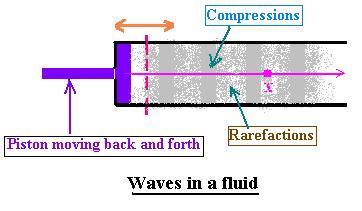

In this figure, the piston moves back and forth in a simple harmonic motion. The first layer of fluid is compressed which transmits the force to its next neighboring element. The force received from the piston forms a compression that travels down through the fluid in the tube. Say the wave (perturbation) travels. During the transmission of the wave, it formes the compressions regions with higher density and pressure and the rarefactions regions with low density and pressure formed during the return motion of the piston.
The element piston in the system can be replaced by a voice and the fluid can be air, we have then a sound wave.
Note that this wave is a longitudinal wave with its wave-length λ that is the distance between a compression and a rarefaction.

Now, suppose that a point (particle) in the fluid is located at a distance x. When a compression reaches this point, it will moves in the direction of the propagation. Once this point transmits its force to the point next to it, it will return (since it moves back and forth and the motion is harmonic). This longitudinal motion for this point can written as an harmonic wave function:

2. The wave equation for sound

For each compression at the position x at the time t, corresponds a change in the pressure ΔP(x,t) and a displacement Δx = ψ(x,t). If P_e is the equilibrium pressure when no wave exists, then the change in pressure can be written as: ΔP(x,t) = P(x,t) - P_e; where P(x,t) represents the pressure of the fluid at time t at position x.
Since the pressure change is proportional to the related displacement, we can then write:

Now, let's take an element of the fluid of area S between x and x + dx when it is in equilibrium . Its volume is Sdx. Because of a longitudinal wave, the two related displacements are ψ(x,t) and ψ(x + dx, t). Thus the change in the volume is ΔV = S [ψ(x + dx, t) - ψ(x , t)]. The fractional change of this volume is: ΔV/V = [ψ(x + dx, t) - ψ(x , t)]/dx = dψ(x,t)/dx

Given the adiabatic bulk modulus, that expresses a small change in pressure ΔP to a relative change in volume ΔV for an element of fluid is written as:
B_s = - V (ΔP/ΔV)    (2.3)
Thus, the equation (2.2) becomes:
dψ(x,t)/dx = - ΔP/B_s    (2.4)
The x components of the two opposite forces exerted in the two opposite faces of the volume elemet are: SΔP(x,t) and SΔP(x + dx, t). The net force on the element is then:
dF = SΔP(x, t) - SΔP(x + dx, t) = S B_s [dψ(x,t)/dx|(x + dx) - dψ(x,t)/dx|x] = S B_s d[dψ(x,t)/dx].    (2.5)
Then: dF/dx = S B_s [dψ(x,t)/dx]/dx = S B_s [d²ψ(x,t)/dx²]    (2.6)
The acceleration of this element is: a_x = d²ψ(x,t)/dt².    (2.7)
Its mass is dm = ρSdx; where ρ is the dnsity of the fluid.
Newton's second law can be written as:
ρSdx d²ψ(x,t)/dt² = dF
Using the equation (2.6), it follows that:
ρ d²ψ(x,t)/dt² = B_s [d²ψ(x,t)/dx²]. Then:

3. Speed of sound in a fluid

We have seen that the equation of propagation of an harmonic wave is :
[d²ψ(x,t)/dx²] - (1/v²) d²ψ(x,t)/dt² = 0     (2.9)
Equating the equations (2.8) and (2.9), we obtain the expression of the speed of sound in a fluid:

For an adiabatic process with an ideal gas, we have PV^γ = Constant
Differentiaring with respect to the volume, we get:
d[PV^γ]/dV = 0
V^γdP/dV + P γV^{γ -} = 0
That is: dP/dV + γ (P/V) = 0, or dP/dV = - γ (P/V)
Using the definition of the bulk modulus, we obtain:
- γ (P/V) = - B_s/V
Thus:
B_s = γ P
from the relationship (.), the speed of sound in a fluid of density ρ becomes:

If M is the molar mass of the fluid, then its mass m = n M = ρV. n is the number of moles and V its volume. We have:
PV = nRT and
P /ρ = nRT/Vρ = (ρV/M)(RT/Vρ) = RT/M

The expression of the speed becomes:

4. Intensity of sound wave in a fluid

The expression of the related power is: Power = F_x dψ/dt = ΔP S dψ/dt
The intensity is equal to: P/S = ΔP dψ/dt
From the equation (2.2) and using ΔP = - (ΔV/V)B_s from the definition of the bulk modulus, and
dψ/dx = Ak cos(kx - ωt)
dψ/dt = - Aωcos(kx - ωt)
The expression of the intensity becomes:
We obtain:
I = - (ΔV/V)B_s (dψ/dt) = - ( dψ/dx)B_s (dψ/dt)
= - ( Ak cos(kx - ωt))B_s (- Aωcos(kx - ωt))= B_s A ² k ω cos²(kx - ωt)
We know that the mean of cos²(kx - ωt) = 1/2; Then:

Using: ΔP = - (ΔV/V)B_s = ΔP = - (dψ/dx)B_s = - Ak cos(kx - ωt)B_s
We find:
ΔP_max = - Ak B_s. I becomes:
I = (1/2)B_s A ² k ω = [ΔP_max]² ω / 2 k B_s
